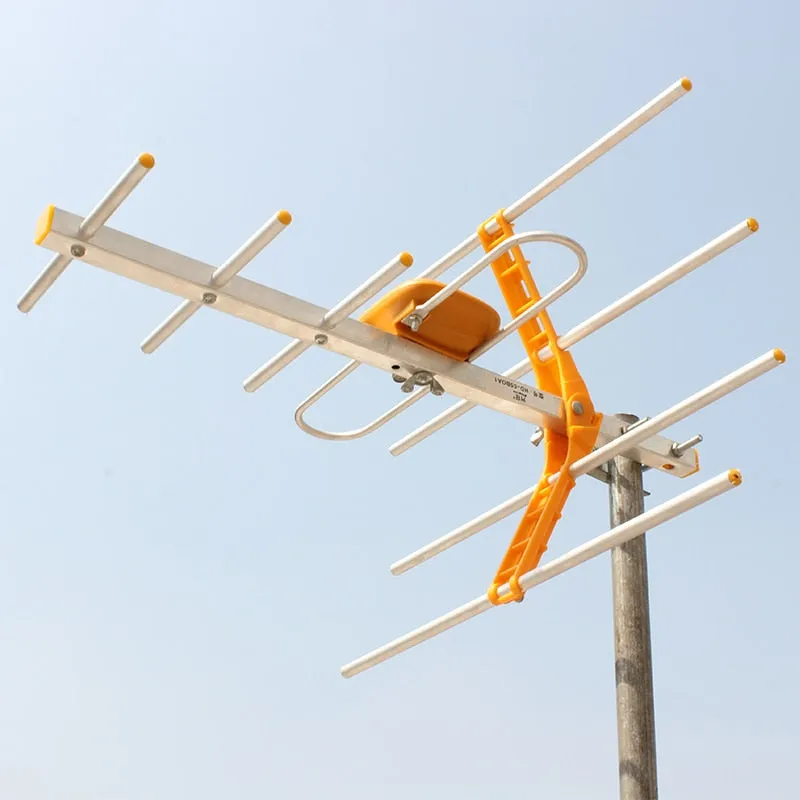

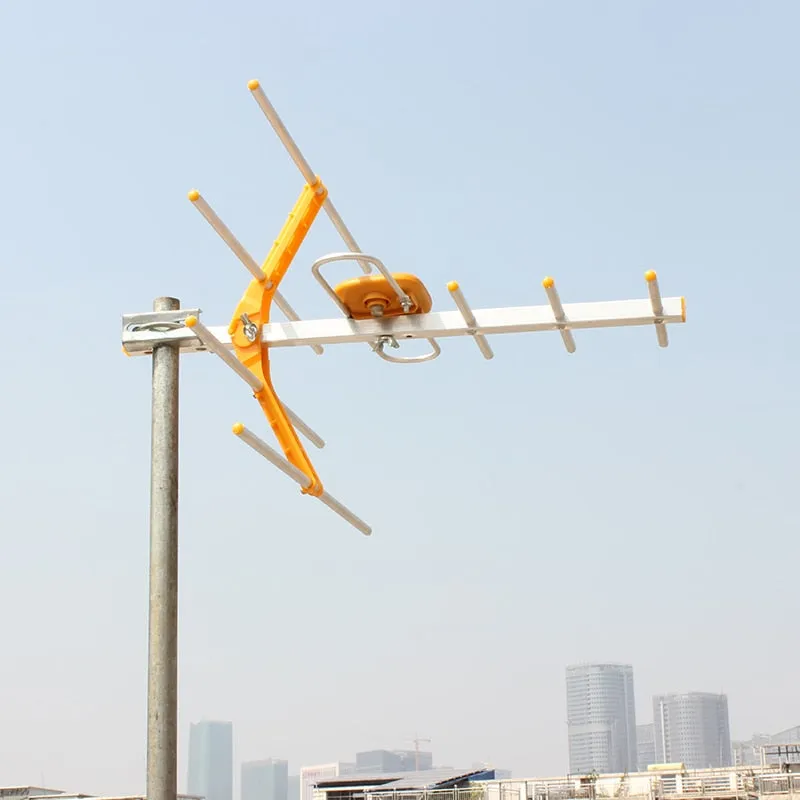

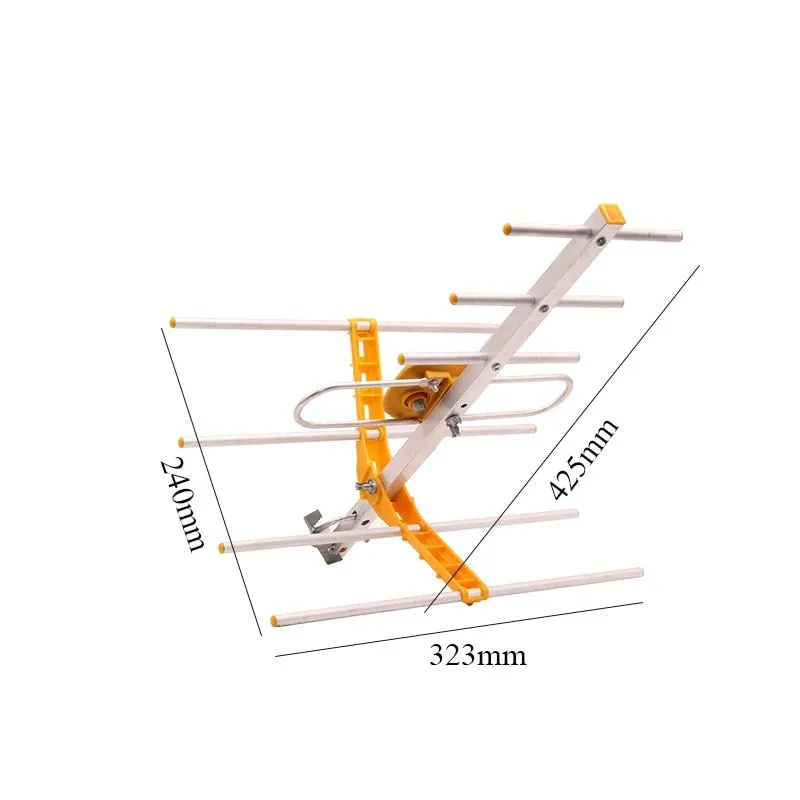

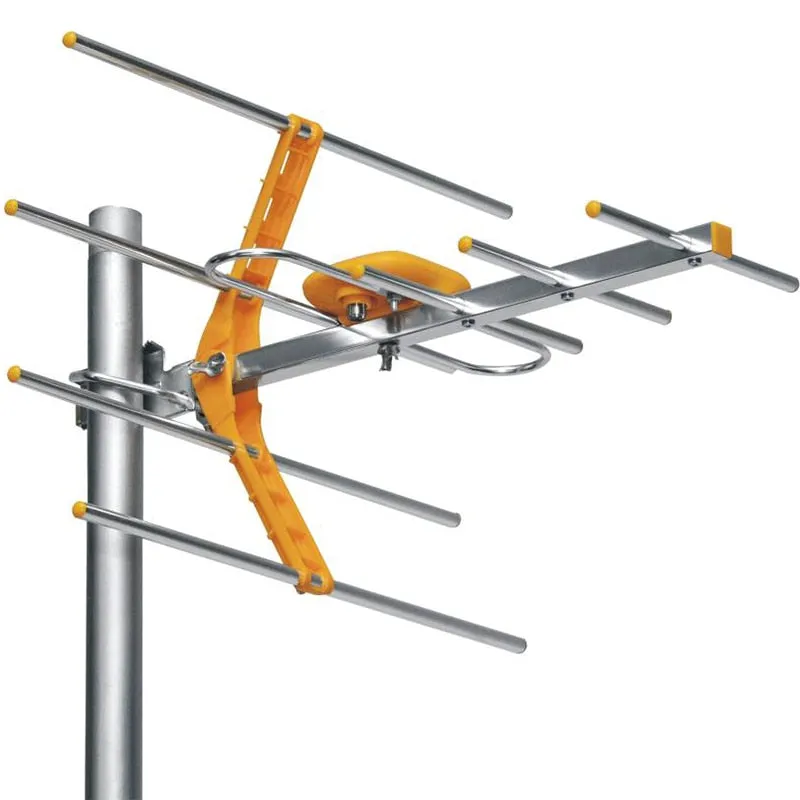

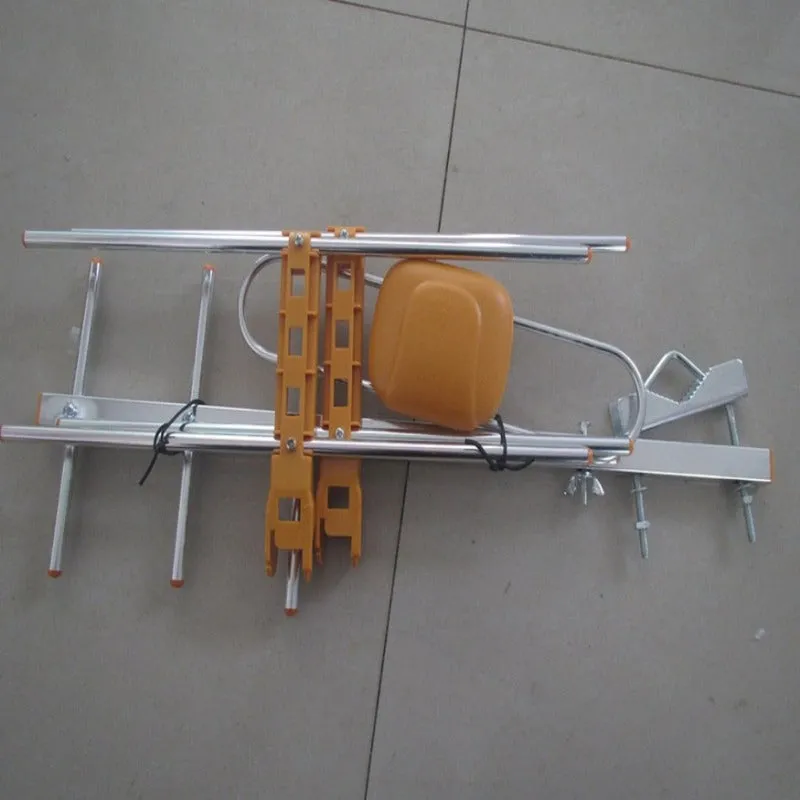

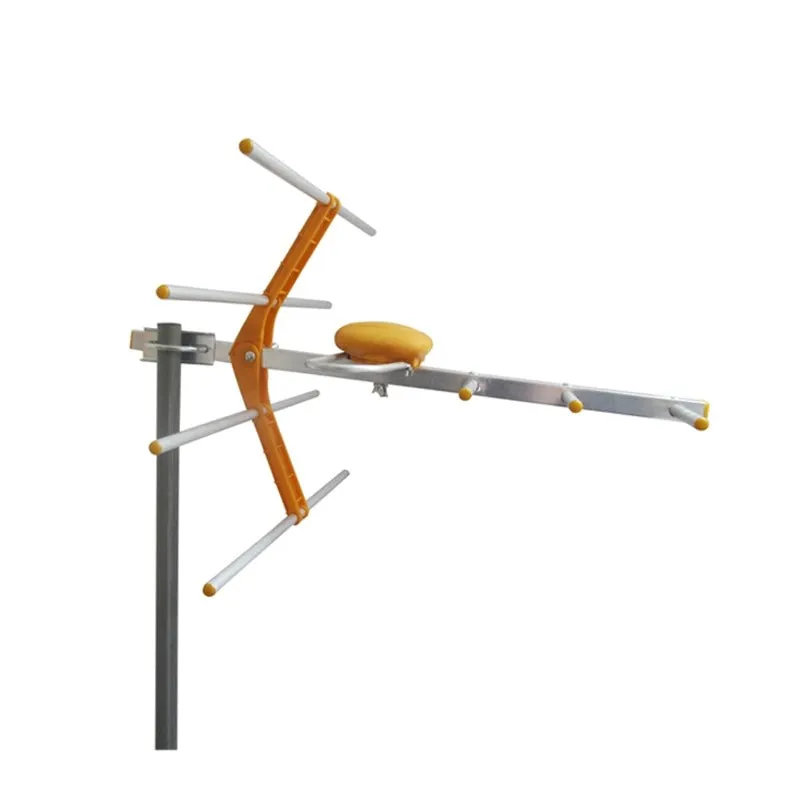

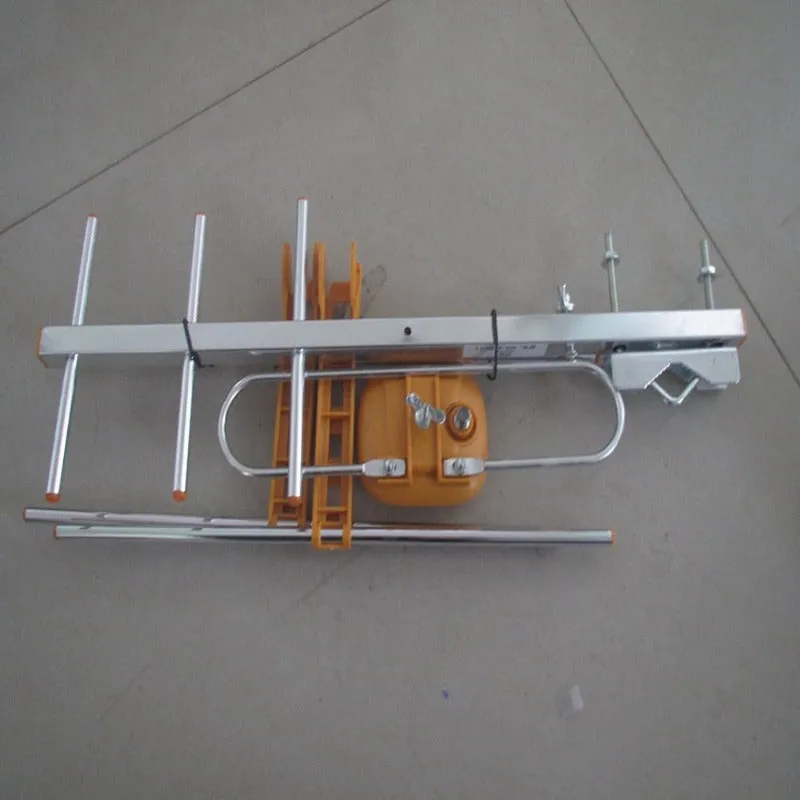

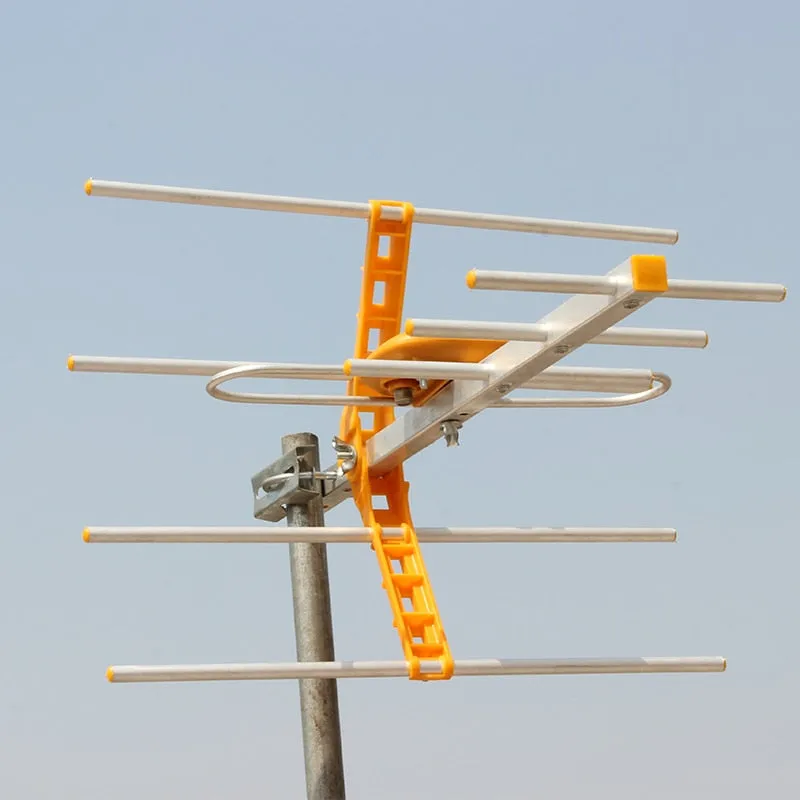

SZbox model HD-05BOA1IA outdoor digital HD TV Antenna, which is an oscillating type of antenna that can find the strong signal direction with its wide frequency band. The folding design antenna has V-reflectors and printing plate impedance that will-match device and effectively receives and transmits digital TV signals. It is compatible with a number of formats like DVB-T/H, DVB-T 2, DMB- T/H, ISDB-T, ATSC-T, ADTB- T, etc. The antenna frequency range is from 470 MHz to 860MHz, and the Output impedance is 75 Ω with a standing wave ratio less than or equal to 2.0 or no greater than or equal to 15 db. The Support bar diameter 30mm to 45mm (about 1.18” to 1.77”). The Interface form is English F female head Polarization, the Working temperature is from - 40 ℃ to 70 ℃ (about -40 deg. F to 158Deg.F), the working humidity is 5% to 95%, and working Air pressure is from 86kPa to 106kPa. The Function is For HD TV, DVBT2, DVBT, ATSC, ISDBT.
| Specifications |
Antenna Type | HD Digital Outdoor TV | Model | 05boa1 |
Format | HD TV | Compatible | DVB-T/H, DVB-T 2, DMB- T/H, ISDB-T, ATSC-T, ADTB- T |
Frequency Range | 470 Mhz -860mhz | Value Added | 7 DB |
Output Impedance | 75 Ω | Wave Ratio | Equal To 2.0 Or Less |
Ratio | Equal To 15 DBOR Grater | Support Bar Diameter | Φ 30 Mm ~ 45 Mm |
Polarization Mode | Horizontal | Working Temperature | - 40 ℃ ~ 70 ℃ |
Relative Humidity | 5%~95% | Air Pressure | 86kpa~106kpa |
